Your location ： Home > Product > Rotary Arm Wrapping Machine Series > Cantilever winding machine series

MP 402 Fully Auto Rotary Arm Wrapping Machine
·  The film wrapping mechanism automatically closes, breaks, and breaks the mucous membrane
·  Dynamic pre stretching membrane frame, pre stretching up to 250%
·  Photoelectric induction, automatic sensing of cargo height, more intelligent
·  Cantilever automatic reset, high sensitivity emergency braking system
· Slewing bearing transmission, no noise, long service life
Contact us Immediately consult

Product details Product parameters Drawing size

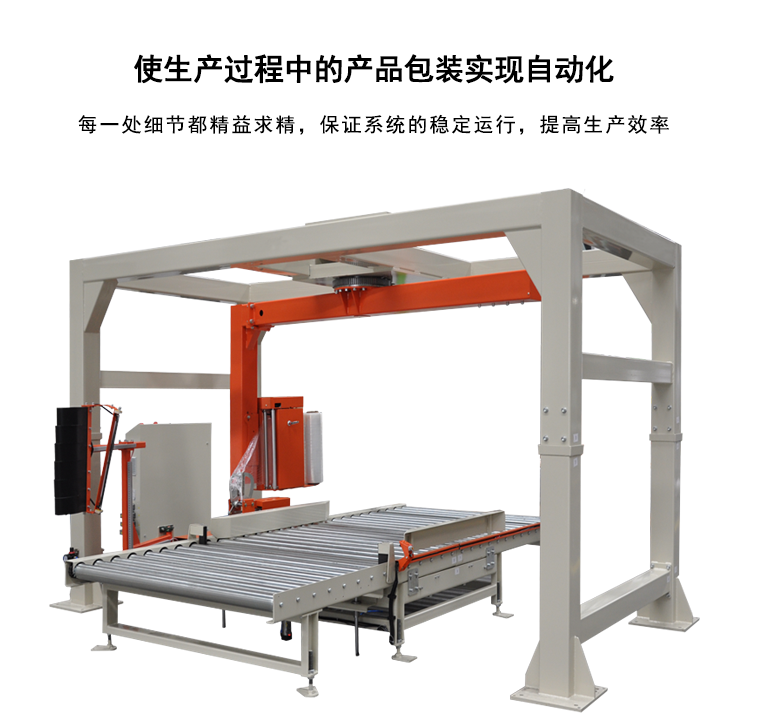

MP 402 Fully Auto Rotary Arm Wrapping Machine(图1)

MP 402 Fully Auto Rotary Arm Wrapping Machine(图2)

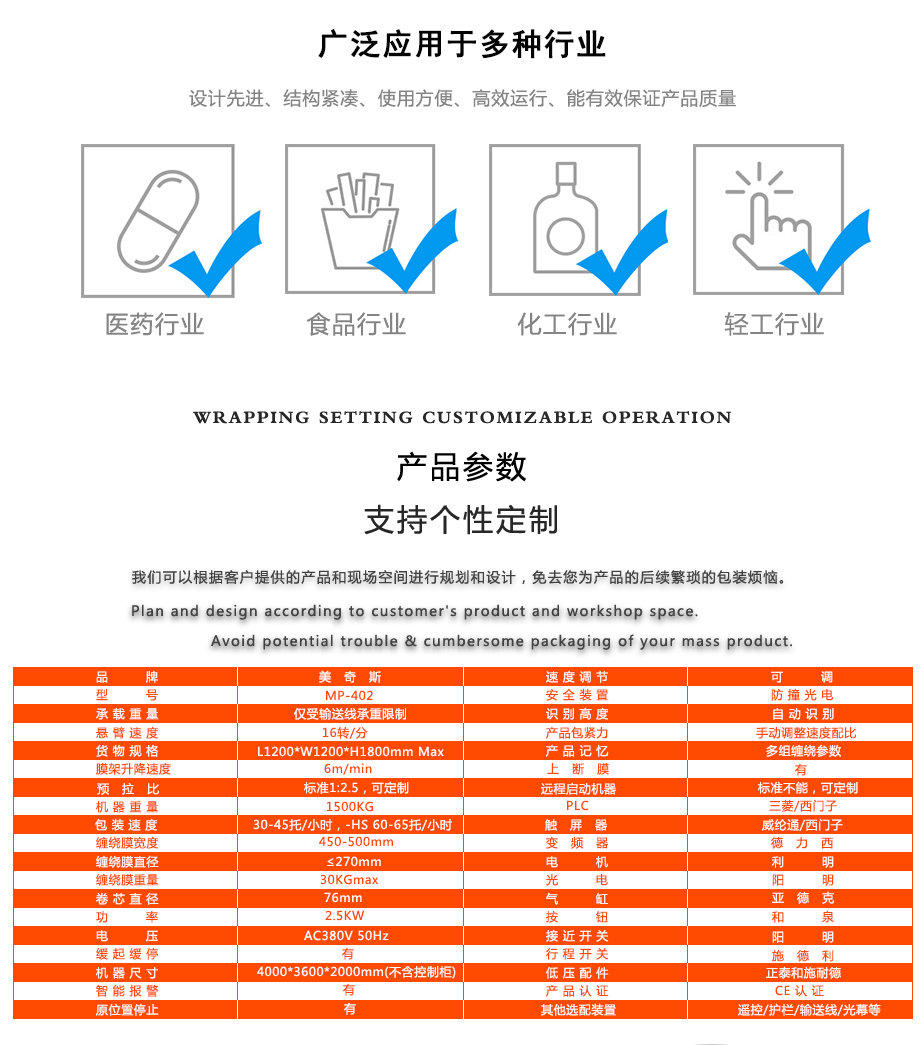

Product Parameters
Rotation Speed:	0-20rpm/min，variable	Power:	2.5KW+conveyor line
Pallet Size:	W(500-1200)mm*L(500-1200)mm	Conveyor Height:	450mm
Wrapping Height:	1800mm	Conveyor Speed:	0-12m/min
Pre tensioning ratio:	250%	Machine voltage:	380V,50/60HZ,20A
Carriage Speed:	3m/min	Machine Weight:	1800kg
Top Sheet Pulling Speed:	12m/min	Machine Dimensions:	320032203120mm
Top Sheet Size:	1800mm,length adjustable	Control:	PLC programmable control、touch screen
Cut Method:	heater	Working Method:	fully auto unmanned
Packing Speed:	20-30 pallets/h	Air Peessuce:	0.4-0.7Mpa

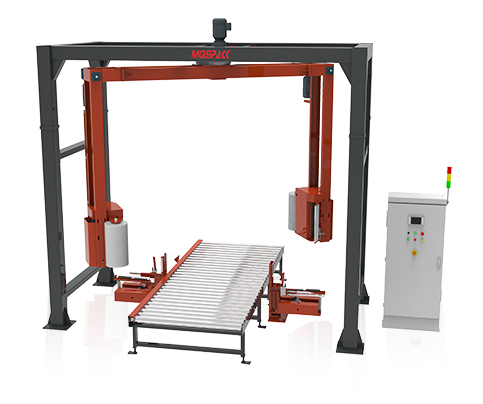

MP402P Pressure top cantilever winding machine(图1)

Product display

Including semi-automatic wrapping machine,fully automatic wrapping machine,conveyorized wrapping machine,strapping machine, meet your packaging requirement
