Your location ： Home > Product > Rotary Arm Wrapping Machine Series > Cantilever winding machine series

MP402P Pressure top cantilever winding machine
·  The film wrapping mechanism automatically closes, breaks, and breaks the mucous membrane
·  Dynamic pre stretching membrane frame, pre stretching up to 250%
·  Photoelectric induction, automatic sensing of cargo height, more intelligent
·  Cantilever automatic reset, high sensitivity emergency braking system
· Slewing bearing transmission, no noise, long service life
Contact us Immediately consult

Product details Product parameters Drawing size

· The film wrapping mechanism automatically closes, breaks, and breaks the mucous membrane

· Dynamic pre stretching membrane frame, pre stretching up to 250%

· Photoelectric induction, automatic sensing of cargo height, more intelligent

· Cantilever automatic reset, high sensitivity emergency braking system

· Slewing bearing transmission, no noise, long service life

Product Parameters
Rotation Speed:	0-20rpm/min，variable	Power:	2.5KW+conveyor line
Pallet Size:	W(500-1200)mm*L(500-1200)mm	Conveyor Height:	450mm
Wrapping Height:	1800mm	Conveyor Speed:	0-12m/min
Pre tensioning ratio:	250%	Machine voltage:	380V,50/60HZ,20A
Carriage Speed:	3m/min	Machine Weight:	1800kg
Top Sheet Pulling Speed:	12m/min	Machine Dimensions:	320032203120mm
Top Sheet Size:	1800mm,length adjustable	Control:	PLC programmable control、touch screen
Cut Method:	heater	Working Method:	fully auto unmanned
Packing Speed:	20-30 pallets/h	Air Peessuce:	0.4-0.7Mpa

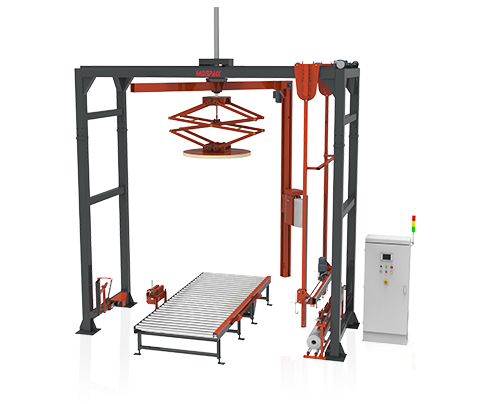

MP402P Pressure top cantilever winding machine(图1)

Product display

Including semi-automatic wrapping machine,fully automatic wrapping machine,conveyorized wrapping machine,strapping machine, meet your packaging requirement
