Your location ： Home > Product > Rotary Arm Wrapping Machine Series > Cantilever winding machine series

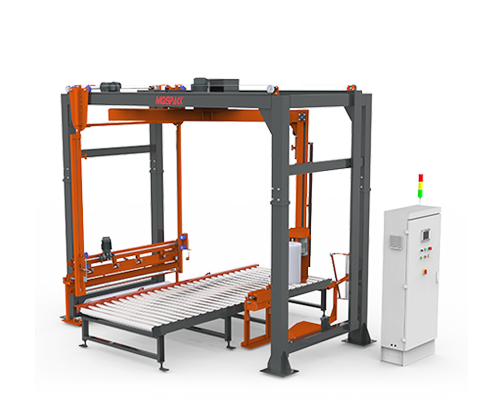

MP 402D Fully Auto Rotary Arm Wrapper with Top Sheet Dispenser
*Two working mode choices： wrapping, or wrapping with top sheet dispensing.
*Automatic apply & cut film.
*Powered pre-stretch ratio: 250%.
*Automatic wrapping according to pre-set parameters. Touch screen user interface for setting wrap cycles, top/bottom cycles & film tension.
*Rotary arm home position, highly sensitive rotary brake system.
Contact us Immediately consult

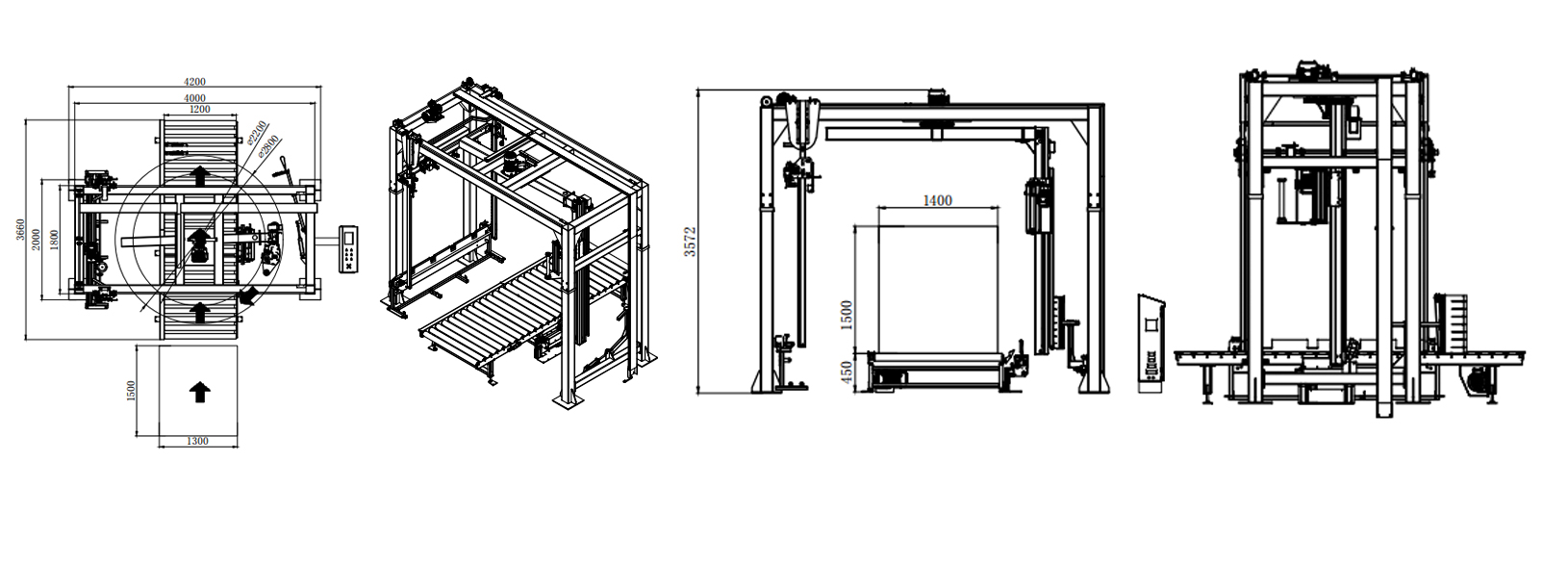

Product details Product parameters Drawing size

MP 402D Fully Auto Rotary Arm Wrapper with Top Sheet Dispenser(图1)

Product Parameters
Rotation Speed:	0-20rpm/min，variable	Power:	2.5KW+conveyor line
Pallet Size:	W(500-1200)mm*L(500-1200)mm	Conveyor Height:	450mm
Wrapping Height:	1800mm	Conveyor Speed:	0-12m/min
Pre tensioning ratio:	250%	Machine voltage:	380V,50/60HZ,20A
Carriage Speed:	3m/min	Machine Weight:	1800kg
Top Sheet Pulling Speed:	12m/min	Machine Dimensions:	320032203120mm
Top Sheet Size:	1800mm,length adjustable	Control:	PLC programmable control、touch screen
Cut Method:	heater	Working Method:	fully auto unmanned
Packing Speed:	20-30 pallets/h	Air Peessuce:	0.4-0.7Mpa

MP402P Pressure top cantilever winding machine(图1)
