Your location ： Home > Product > Horizontal wrapping machine > Horizontal winding machine

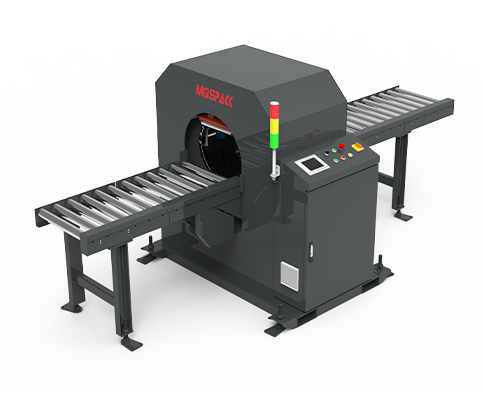

MH301 Horizontal Winding Machine
· PLC control, touch screen user interface.
·  Rotation speed and conveyor speed variable, overlapping width could be adjusted according to requirements.
·  Pneumatically driven pressing devices effectively hold the products during wrapping.
·  Swing ring structure ring for quieter use environment and increased reliability. *Photocell automatically senses the products and starts wrapping. Auto film clamp & cut.
Contact us Immediately consult

Product details Product parameters Drawing size

· PLC control, touch screen user interface.

· Rotation speed and conveyor speed variable, overlapping width could be adjusted according to requirements.

· Pneumatically driven pressing devices effectively hold the products during wrapping.

· Swing ring structure ring for quieter use environment and increased reliability. *Photocell automatically senses the products and starts wrapping. Auto film clamp & cut.

Product Parameters
Ring Diameter	900mm	Conveyor Length	made to order
Wrapping Size	550mm*550mm	Power	0.75kw+conveyor
Wrapping Length	≥700mm，Unlimited length	Machine voltage	380V,50/60HZ,20A
Rotation Speed	20-60rpm,variable	Control	PLC programmable control
Conveyor Speed	5-8m，variable	Working Mode	auto

MH301 Horizontal Winding Machine(图1)

Product display

Including semi-automatic wrapping machine,fully automatic wrapping machine,conveyorized wrapping machine,strapping machine, meet your packaging requirement
